Night 4:Gamma-ray Speed
Delayed light
Delayed light
Do you dare question Einstein?
In the notebook on the right, you’ll learn how I carry out the calculations to see if all the gamma rays reach us at the same speed.
Now, don’t hold back and get on with the calculations and graphs. It’s your last chance before your big night.
Remember to stay cautious vigilant. There can be many explanations for the fact that gamma rays with different energies have a different arrival time. Some of these explanations have to do with the wormholes of spacetime, which you have surely heard of.
It seems clear that there’s a different arrival time for different energies.
But, it’s important to remain cautious. To be sure that the effect is due to the different speeds of the photons, we should see a delay that’s consistent with the same speed from several sources located at varying distances from the Earth. We can’t discard a theory based on a single case. We need a lot more evidence.
The only thing we can do is keep watching the flares and capture as many gamma rays as possible with our telescopes.
Defying Einstein
Albert Einstein claimed that, the speed of light within the vacuum is always the same … My gamma rays from Mrk421 have travelled through the vacuum for a long time to get from their source to the Earth. Let’s see if they have all gone at the same speed. As each one has travelled the same distance, “all” I have to do is check whether the time it takes between leaving Mrk421 and getting to the Earth is the same for each one.
Let’s start by loading the libraries and reading the data, as always.
import pandas as pd
import numpy as np
import matplotlib.pyplot as pl
%matplotlib inline
# We read the files and give them a name
mrk421_ON= pd.read_csv('data/EvtList_ON_Mrk421.txt', sep=' ')
mrk421_OFF= pd.read_csv('data/EvtList_OFF.txt', sep=' ')
# We define the cut variables had_cut and theta_cut to make the light curve
# (remember, we use the cut to calculate the excesses, not to make the theta plot)had_cut = 0.20
theta2_cut = 0.02
# We select the data:
mrk421_ON_cut = mrk421_ON[(mrk421_ON['had'] < had_cut) & (mrk421_ON['theta2'] < theta2_cut)]
mrk421_OFF_cut = mrk421_OFF[(mrk421_OFF['had'] < had_cut) & (mrk421_OFF['theta2'] < theta2_cut)]
# We use OFF normalization factor that we found before
factor = 4.71
mrk421_ON_cut.head()
| Energia | had | theta2 | Tiempo | |
|---|---|---|---|---|
| 31 | 172.0 | 0.006 | 0.003 | 9033.70 |
| 75 | 65.0 | 0.157 | 0.018 | 4643.12 |
| 170 | 367.0 | 0.097 | 0.003 | 2497.60 |
| 196 | 177.0 | 0.074 | 0.009 | 3845.38 |
| 226 | 875.0 | 0.008 | 0.001 | 3654.35 |
In the data for Mrk421, we have the column Tiempo (Time), which indicates the moment in which the telescope detects the gamma rays.
The question is, how can I know how long each of the gamma rays has taken to travel from Mrk421 to the Earth? The answer: I can’t. I only know when they’ve reached the Earth.
But, if I have data which shows that the amount of gamma rays changes over time, I can see if that change happens at the same time regardless of the gamma rays energy.
The Gamma rays are photons and when they enter the Earth’s atmosphere they interact with their molecules and generate a cascade of particles. Some photons come to Earth with more energy than others. The more energy they have the more “strongly” they collide with the molecules in the atmosphere and more particles are generated. If there are more particles we see more light with our MAGIC telescopes. This allows us to assign each event an amount of energy carried by the gamma ray. In the files:
** EvtList_ON_Mrk421.txt ** and ** EvtList_OFF.txt **
We not only have the hadroness, the theta square and the time for each event, we also have their energy in GeV. So, we can select the higher energy gamma rays, on the one hand, and the lower energy gamma rays on the other. This way we can analyse them independently.
Most (if not all) of the theories that predict that the speed of light in a vacuum is not always the same, indicate that this speed depends on the energy of the light, that is the energy of the gamma rays.
We need to define two energy intervals in our data: Low (Energy <100 GeV) and High (Energy> 500 GeV). To have this, we do the same as we did to cut on theta square or hadroness.
# 1 We define the cuts of "high energies" and "low energies"
cut_highE = 5000
cut_lowE = 1000
# 2 We select the data
# High energy
mrk421_ON_cut_highE =mrk421_ON_cut[mrk421_ON_cut['Energia']>cut_highE]
mrk421_OFF_cut_highE =mrk421_OFF_cut[mrk421_OFF_cut['Energia']>cut_highE]
# Low energy
mrk421_ON_cut_lowE =mrk421_ON_cut[mrk421_ON_cut['Energia']<cut_lowE]
mrk421_OFF_cut_lowE =mrk421_OFF_cut[mrk421_OFF_cut['Energia']<cut_lowE]
If we assume that when a flare occurs, the source simultaneously increases the number of photons for all energies, we can create a light curve for the two energy ranges and check if the amount of gamma rays we see grows at the same time for both ranges.
First we will create the light curve for high energies. Then, we will do the same for low energies, before, finally combining them. This time, instead of using 100 time slots, we will use 40.
#Light Curve High Energy
weights_high = np.ones_like(mrk421_OFF_cut_highE.theta2)*factor
# 1 Calculate Non and Noff for each time interval.
# We define 40 intervals (bins) in the 10,000 seconds of our data
bins = 40
Non, tiempos_highE= np.histogram(mrk421_ON_cut_highE.Tiempo, bins=bins)
Noff, bins_off= np.histogram(mrk421_OFF_cut_highE.Tiempo, bins=tiempos_highE, weights=weights_high)
# 2 Calculate the excess and the error for each time interval.
Exceso_highE= Non - Noff
Error_highE = (Non+Noff)**0.5
# 3 Create the light curve: the excesses with their errors over time
pl.figure(1, figsize=(10, 5), facecolor='w', edgecolor='k')
pl.errorbar(tiempos_highE[1:], Exceso_highE, xerr=10000.0/(2.0*bins), yerr= Error_highE, fmt='or', ecolor='red')
pl.xlabel('Tiempo [s]')
pl.ylabel('Numero de rayos Gammas')

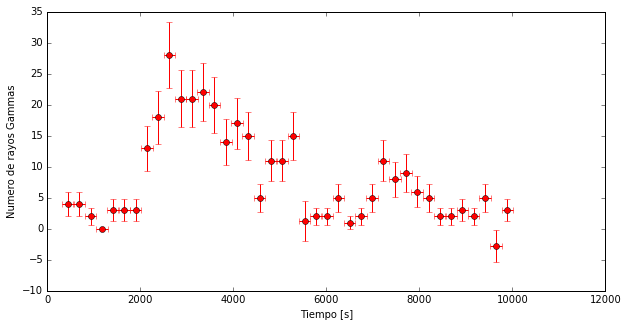

pl.show()
#Light Curve Low Energy
weights_low = np.ones_like(mrk421_OFF_cut_lowE.theta2)*factor
# 1 Calculate Non and Noff for each time interval.
# We define 40 intervals (bins) in the 10,000 seconds of our data
bins =40
Non, tiempos_lowE= np.histogram(mrk421_ON_cut_lowE.Tiempo, bins=bins)
Noff, bins_off= np.histogram(mrk421_OFF_cut_lowE.Tiempo, bins=tiempos_highE, weights=weights_low)
# 2 Calculate the excess and the error for each time interval.
Exceso_lowE= Non - Noff
Error_lowE = (Non+Noff)**0.5
# 3 Create the light curve: the excesses with their errors over time
pl.figure(1, figsize=(10, 5), facecolor='w', edgecolor='k')
pl.errorbar(tiempos_lowE[1:], Exceso_lowE, xerr=10000.0/(2.0*bins), yerr= Error_lowE, fmt='or', ecolor='red')
pl.xlabel('Tiempo [s]')
pl.ylabel('Numero de rayos Gammas')
pl.show()

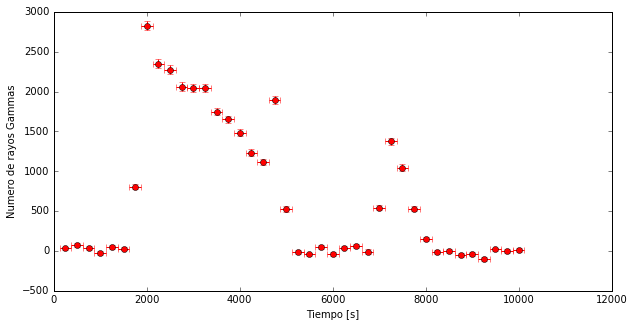

At first glance, we see that more low-energy gammas than high-energy gammas arrive, which is what we would expect.
But in order to see if there is any time difference between the two light curve, it is better to put the two of them on the same graph. While we’re at it, we will give the points and axis of each one the same colour. Let’s see how we can do this.
# 4 Depict the excess and error over time
# We use the function "pl.subplots ()" from which we can recover the axes in ax1
fig, ax1 = pl.subplots()
# Now instead of calling pl.errorbar, we call it with ax1.errorbar and
# we also add titles to the axis
ax1.errorbar(tiempos_highE[1:], Exceso_highE, xerr=10000.0/(2.0*bins), yerr=Error_highE, fmt='-or', ecolor='red')
ax1.set_ylabel('Numero de rayos Gamma, alta energia', color='r')
# Now, we include the light curve for low energy
ax2 = ax1.twinx()
ax2.errorbar(tiempos_lowE[1:], Exceso_lowE, xerr=10000.0/(2.0*bins), yerr=Error_lowE, fmt='-ob', ecolor='blue')
ax2.set_ylabel('Numero de rayos Gamma, baja energia', color='b')
# The light curve for high energy is in red (r) and
# the low energy one is blue (b).
# Let's do the same for the axes, so that it's clear what's what.
for tl in ax1.get_yticklabels():
tl.set_color('r')
for tl in ax2.get_yticklabels():
tl.set_color('b')
ax1.set_xlabel('Tiempo [s]')
pl.show()

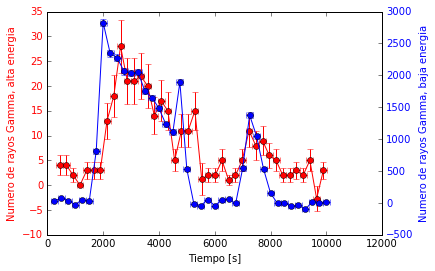

This flare is full of interesting things, it seems clear that the amount of high energy (Red) gamma rays increases after the low energy (Blue) gamma-rays do. Does this mean that Einstein was wrong?
Note: By the way, in order to better compare the two light curves I have drawn a line to join the points. This is done by including “-” with “fmt = ‘- or’” and “fmt = ‘- ob’”.
Now we can visualize the events detected by the camera as we did before, but, this time, separating them according to the energy level:
from IPython.display import HTML
HTML("""
<video width="600" height="600" controls="" autoplay="" loop="">
<source src="data/animation_HighLow.mp4" type="video/mp4">
</video>
""")
