Night 4:Gamma-ray Speed
Active galactic nuclei
Active galactic nuclei
Mkn 421 is a galaxy withi an active nucleus located in Ursa Major. In fact, it’s one of the closest to Earth, only 400 million light years away.
It was one of the first sources that we discovered gamma rays arrived from. It’s also one of the known sources from which gamma rays reach the Earth regularly.
Also, on rare occasions, it emits much more light and, becomes the brightest object in the gamma-ray universe. We’re not talking about just a little more light, but a full order of magnitude more. That’s to say, it becomes 10 times brighter.
At the heart of an active galaxy, matter falling into a supermassive black hole creates jets of particles that travel at almost the speed of light. For active galaxies classified as blazars, one of these jets points almost directly towards Earth. Image Credit: NASA
In the notebook on the right, you can see how we analyse the data. First of all, if there’s a signal in the data collected tonight on Mkn 421. Then, we check the temporal evolution of the signal during the night.
Is there or is there not a flare?
Leyre’s scientific notebook
Surely after spending a night with Daniel, Alba and Quim, you are already an expert in analysing data and programming with python. I bet you already know how to do a lot of what is in my notebook without my help, too. That said, I hope I can still teach you something new!
To begin with, let’s see if there are any gamma rays in the data we’ve collected. The people from VERITAS were very excited. But it wouldn’t be the first time that a build-up of excitement leads to a disappointment.
You’ve already got the theta plot under control, right?
import pandas as pd
import numpy as np
import matplotlib.pyplot as pl
%matplotlib inline
# We read the files and give them a name
mrk421_ON= pd.read_csv('data/EvtList_ON_Mrk421.txt', sep=' ')
mrk421_OFF= pd.read_csv('data/EvtList_OFF.txt', sep=' ')
# We define the cut variables had_cut and theta_cut
had_cut = 0.20
theta2_cut = 0.40
# We select the data:
mrk421_ON_cut = mrk421_ON[(mrk421_ON['had'] < had_cut) & (mrk421_ON['theta2'] < theta2_cut)]
mrk421_OFF_cut = mrk421_OFF[(mrk421_OFF['had'] < had_cut) & (mrk421_OFF['theta2'] < theta2_cut)]
pl.figure(1, figsize=(10, 5), facecolor='w', edgecolor='k')
Noff, ThetasOff, _ = pl.hist(mrk421_OFF_cut.theta2, bins=40, histtype='stepfilled', color='red', alpha=0.5, normed=False)
Non, ThetasOn, _ = pl.hist(mrk421_ON_cut.theta2, bins=40, histtype='step', color = 'blue',alpha=0.9, normed=False)
pl.xlabel('$\Theta^2$ [$grados^2$]')
pl.ylabel('Numero de Eventos')
pl.show()

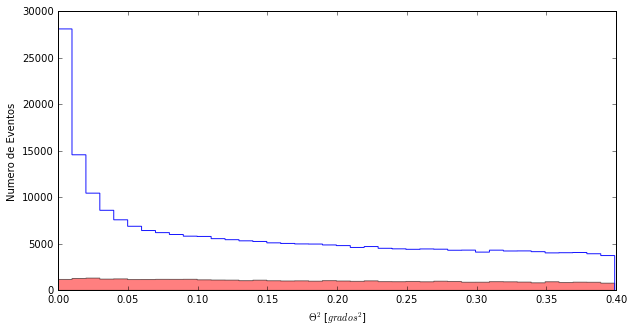

Correct!!! As Mrk 421 was in flare we didn’t waste time collecting OFF data, but rather we collected as much ON as we could. You never know how long a flare will last. So, we basically spent three straight hours collecting ON data from Mrk 421. Now, of course, ON and OFF events don’t coincide.
Well, this is easy to resolve. What I am really interested in knowing is what the OFF is in the area where there is a signal: Theta Square small values. So I can see by what factor I have to multiply OFF so that it coincides with ON of large Theta Square values (between 0.25 and 0.35, for example). I use this factor to scale the whole OFF and I already have a good estimation of how many ON events are not gamma rays coming from Mrk 421.
eventos_off = sum(Noff[26:35])
eventos_on = sum(Non[26:35])
factor = eventos_on / eventos_off
print ("We need to scale OFF by a factor:", factor)
('We need to scale OFF by a factor:', 4.7118271695349687)
Now I have the scale factor, do you understand how I got it? Let’s see how I can apply it to all events from the OFF observations.
The easiest way to do this is by using weights …
pl.figure(2, figsize=(10, 5), facecolor='w', edgecolor='k')
# We create a variable 'weights' and we complete it with ones (ones_like) multiplied by
# the factor that we have just found
weights = np.ones_like(mrk421_OFF_cut.theta2)*factor
# Now we just need to add a parameter weights=weights
# to the function we already know: pl.hist
Noff, ThetasOff, _ = pl.hist(mrk421_OFF_cut.theta2, bins=40, histtype='stepfilled', color='red', alpha=0.5, normed=False, weights=weights)
Non, ThetasOn, _ = pl.hist(mrk421_ON_cut.theta2, bins=40, histtype='step', color = 'blue',alpha=0.9, normed=False)
pl.xlabel('$\Theta^2$ [$grados^2$]')
pl.ylabel('Numero de Eventos')
pl.show()

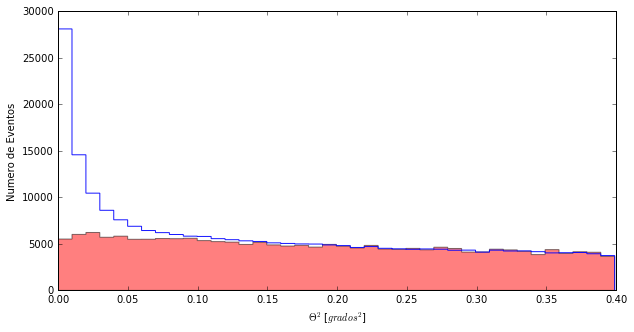

Wow! Well yes, it was a flare. I’ve got more gamma rays in three hours (specifically 10,000 seconds) than Daniel, Alba and Quim will ever have!
In fact, with so many gamma rays, we can now see if the amount that we receive changes over time. Because this is actually what flares consist of: the number of gamma rays that reach us from a given direction increases for a certain time.
To do so, the first thing I need is to find the arrival time of each ON event. I will always use the same OFF, which doesn’t change over time.
Our data includes a new column called Tiempo (Time) that tells us when the telescope detects each of the gamma rays.
mrk421_ON_cut.head()
| Energia | had | theta2 | Tiempo | |
|---|---|---|---|---|
| 24 | 90.0 | 0.130 | 0.333 | 8346.26 |
| 31 | 172.0 | 0.006 | 0.003 | 9033.70 |
| 32 | 85.0 | 0.062 | 0.239 | 1300.29 |
| 34 | 61.0 | 0.159 | 0.268 | 2116.28 |
| 54 | 3081.0 | 0.196 | 0.204 | 7509.42 |
To use the Tiempo column, you know that for both ON and *OFF you just have to do:
mrk421_ON_cut.Tiempo
Now I want to see how the gamma rays reach us as the seconds go by. Remember, this is a flare, an explosion, so we expect the number of gammas to change quickly over time. But the best thing is seeing it with our own eyes.
The graph we are looking for is called a light curve and it shows us the amount of excesses (ON - OFF) that I have in each time interval.
This is how you can do the calculations and create the graph.
# How to calculate a light curve
# 1 We prepare the data taking into account that the excesses are calculated with:
# a / After the hadroness cut
# b / Using the events in the first two bins of the theta plot,
# which is Theta Square <0.02
# c / With OFF and ON normalized
had_cut = 0.20
theta2_cut = 0.02
mrk421_ON_cut_LightCurve = mrk421_ON[(mrk421_ON['had'] < had_cut) & (mrk421_ON['theta2'] < theta2_cut)]
mrk421_OFF_cut_LightCurve = mrk421_OFF[(mrk421_OFF['had'] < had_cut) & (mrk421_OFF['theta2'] < theta2_cut)]
weights = np.ones_like(mrk421_OFF_cut_LightCurve.theta2)*factor
# 2 Calculate Non and Noff for each time interval.
# We are going to define 100 intervals (bins) in the 10,000 seconds of our data
bins =100
Non, tiempos= np.histogram(mrk421_ON_cut_LightCurve.Tiempo, bins=bins)
Noff, bins_off= np.histogram(mrk421_OFF_cut_LightCurve.Tiempo, bins=tiempos, weights=weights)
# 3 Calculate the excess and its error for each time interval.
Exceso= Non - Noff
Error= (Non + Noff)**0.5
# 4 Display the light curve: the excesses with their errors over time
pl.figure(1, figsize=(10, 5), facecolor='w', edgecolor='k')
pl.errorbar(tiempos[1:], Exceso, xerr=10000.0/(2.0*bins), yerr= Error, fmt='or', ecolor='red')
pl.xlabel('Tiempo [s]')
pl.ylabel('Numero de rayos Gammas')
pl.show()

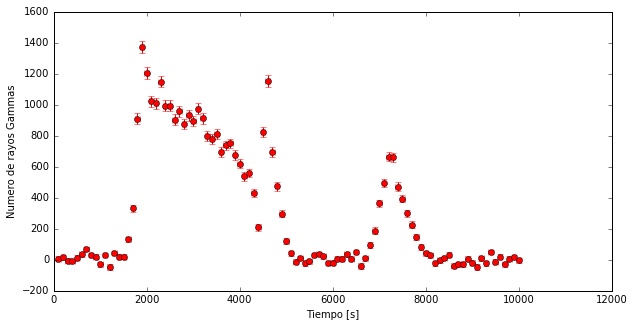

Cool! Not only does the number of gamma rays change, but it also does so quickly. When we are lucky enough to observe a flare like this, we can get a lot of information, both about the source itself and the processes that occur within it, as well as about what happens to the gamma rays as they travel from the source to the Earth. What interests me most is this second part!
Note: Unlike the theta plot, in step 4 I don’t want to show how many times something happens in my data. Instead, I want to show one variable (Number of Excesses) depending on another (Time), with its errors. For that I can’t use “pl.hist”. That’s why I use another function that does exactly what I need:
pl.errorbar (VariableEjeX, VariableEjeY)
Also, additional parameters can be given:
Error in the X axis: xerr = ??? Error in Y axis: yerr = ??? Format of the points: fmt = ‘or’, or to have a circle at each point and r to be in red Color to represent the errors: ecolor = ‘red’
That way, we can represent the number of excesses as a function of time, this is what we call a light curve.
Now, we are going to show the data in a different way:
We can see how the gamma rays detected by the telescope’s camera change over the 10,000 seconds that the flare lasts. If you look closely, you can clearly see when the flare occurs in ON, while in OFF everything remains the same. Of course, it coincides with the peaks of the lightcurve. The events are concentrated in the centre of the camera because we are pointing towards Mrk421.
Why are there some detections that are circumferences? The size of an event depicts its energy.
from IPython.display import HTML
HTML("""
<video width="600" height="600" controls="" autoplay="" loop="">
<source src="data/animation_ONOFF.mp4" type="video/mp4">
</video>
""")
