Night 3:In an Unknown Land

Keep an eye on the landscape

Sometimes, we start a journey and don’t reach our final destination. This can be because the weather takes a turn for the worst, we run out of energy or we’ve gone the wrong way. Sometimes, we have no choice but to turn back.

However, we can always make the most of a bad situation. We can warn other mountaineers what path they ought to take or let them know that the weather has changed up ahead.

If we also look at the landscape with each step we take, we may find unexpected surprises, that is, things that are completely different to what we were looking for.

The same thing happens when hunting gammas. Dark matter will have to wait. But, does that mean that the hundreds of hours we’ve spent on observation have been a waste of time? No way! There’s a lot of analysis to be done and we can still be surprised.

There are many ways to analyse data. Sometimes we start the analysis with a certain objective and we lose things along the way.

My boss always tells me not to waste time doing extra things and to concentrate on the search for dark matter.

Although I never find anything. I like to check ans see if something else has appeared in the data. appears in the data. If you want, you can look at my notebook and see how I create a skymap of the region and look beyond what I had planned to do.

Dark matter is distributed around the centre of the cluster of galaxies. That’s why we’re going to look for it there. But, what if we don’t focus on the centre of the cluster?

Enter

import numpy as np
import pandas as pd
import matplotlib.pyplot as pl
import scipy.ndimage as ndimage
%matplotlib inline

  warnings.warn('Matplotlib is building the font cache using fc-list. This may take a moment.')

The sky map sometimes comes with surprises

Even though we can’t see anything in the centre of the Perseus cluster, isince we already have the data, let’s look at what the sky (the gamma ray) looks like around Perseus. We can do this with the same data we used to make the theta plot, just like Daniel did for Cas A.

# We read the files and give them a name
perseus_ON= pd.read_csv('data/EvtList_ON_Perseus_All.txt', sep=' ')
perseus_OFF= pd.read_csv('data/EvtList_OFF_Perseus_All.txt', sep=' ')

# We define the cut variables
had_cut = 0.20

# We select the data:
perseus_ON_cut = perseus_ON[perseus_ON['had'] < had_cut]
perseus_OFF_cut = perseus_OFF[perseus_OFF['had'] < had_cut]

# We check waht our loaded and selected data looks like
perseus_ON_cut.head(5)

	had	theta2	XCam	YCam
0	0.077	0.139	-0.323	0.185
27	0.083	0.253	0.064	0.498
31	0.119	0.279	0.452	-0.271
34	0.117	0.545	-0.688	-0.266
42	0.119	0.478	0.677	-0.136

You’ll see that now we have two new columns: XCam and YCam. These indicate the direction we think it comes from for each event. Each position on the camera indicates a position in the sky.

Let’s look in detail what Daniel did for his skymap function.

In contrast to the theta plot, here we want to show the data in 2 dimensions: positions X and Y. To do so, we have to use the function np.histogram2d instead of pl.hist. It works in a very similar way. We just need to provide two variables, for example camX_perseus and camY_perseus.

Also, there’s an error in the arrival address of each event. This implies that each event is likely to come, not only from a specific point but from a region of the sky. This is done with the gaussian filter as seen below for both OFF and ON data.

img1 = ndimage.gaussian_filter(hist_off, sigma=(5, 2), order=0)

img2 = ndimage.gaussian_filter(hist_perseus, sigma=(5, 2), order=0)

Now we can calculate the excesses by substracting OFF from ON:

hist_excess = np.subtract(img2, img1)

In addition, we know that the level of efficiency to detect events is not the same for the whole camera. A simple way to evaluate this efficiency is to divide the excesses by the OFF data that can be found at each point of the camera. To do so, we have:

hist_excess = np.divide(hist_excess, img1)

Then, we just need to show the 2D chart that remains after carrying out these operations.

# Skymap of the selected data:
hist_perseus, xedge, yedge = np.histogram2d(perseus_ON_cut.XCam, perseus_ON_cut.YCam, bins=71)
hist_off, xedge, yedge = np.histogram2d(perseus_OFF_cut.XCam, perseus_OFF_cut.YCam, bins=71)
img1 = ndimage.gaussian_filter(hist_off, sigma=(5, 2), order=0)
img2 = ndimage.gaussian_filter(hist_perseus, sigma=(5, 2), order=0)
hist_excess = np.subtract(img2, img1)
hist_excess = np.divide(hist_excess, img1)
pl.imshow(hist_excess, interpolation='gaussian', extent=[3.41,3.25,41.75,41.25],aspect="auto")
pl.xlabel('Ascencion Recta [deg]')
pl.ylabel('Declinacion [deg.]')
pl.show()

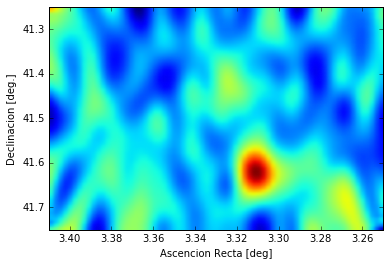

png

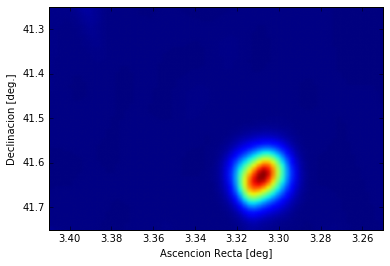

Wait! There’s something there…And I actually don’t remember ever seeing that before. Let’s see if it’s always been there or if it only appeared in the data that we collected yesterday.

# We read the files and give them a name:
perseus_ON= pd.read_csv('data/EvtList_ON_Perseus_LastDay.txt', sep=' ')
perseus_OFF= pd.read_csv('data/EvtList_OFF_Perseus_LastDay.txt', sep=' ')

# We define the cut variables:
had_cut = 0.20

# We select the data:
perseus_ON_cut = perseus_ON[perseus_ON['had'] < had_cut]
perseus_OFF_cut = perseus_OFF[perseus_OFF['had'] < had_cut]

# We represent the Skymap:
hist_perseus, xedge, yedge = np.histogram2d(perseus_ON_cut.XCam, perseus_ON_cut.YCam, bins=71)
hist_off, xedge, yedge = np.histogram2d(perseus_OFF_cut.XCam, perseus_OFF_cut.YCam, bins=71)
img1 = ndimage.gaussian_filter(hist_off, sigma=(5, 2), order=0)
img2 = ndimage.gaussian_filter(hist_perseus, sigma=(5, 2), order=0)
hist_excess = np.subtract(img2, img1)
hist_excess = np.divide(hist_excess, img1)
pl.imshow(hist_excess, interpolation='gaussian', extent=[3.41,3.25,41.75,41.25],aspect="auto")
pl.xlabel('Ascencion Recta [deg]')
pl.ylabel('Declinacion [deg.]')
pl.show()

png

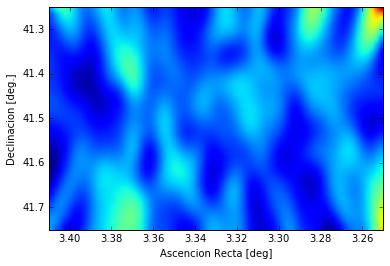

Yesterday it was very clear … let’s check what happened with the rest of the data …

# We read the files and give them a name:
perseus_ON= pd.read_csv('data/EvtList_ON_Perseus_Other.txt', sep=' ')
perseus_OFF= pd.read_csv('data/EvtList_OFF_Perseus_Other.txt', sep=' ')

# We define the cut variables:
had_cut = 0.20

# We select the data:
perseus_ON_cut = perseus_ON[perseus_ON['had'] < had_cut]
perseus_OFF_cut = perseus_OFF[perseus_OFF['had'] < had_cut]

# We create the Skymap:
hist_perseus, xedge, yedge = np.histogram2d(perseus_ON_cut.XCam, perseus_ON_cut.YCam, bins=71)
hist_off, xedge, yedge = np.histogram2d(perseus_OFF_cut.XCam, perseus_OFF_cut.YCam, bins=71)
img1 = ndimage.gaussian_filter(hist_off, sigma=(5, 2), order=0)
img2 = ndimage.gaussian_filter(hist_perseus, sigma=(5, 2), order=0)
hist_excess = np.subtract(img2, img1)
hist_excess = np.divide(hist_excess, img1)
pl.imshow(hist_excess, interpolation='gaussian', extent=[3.41,3.25,41.75,41.25],aspect="auto")
pl.xlabel('Ascencion Recta [deg]')
pl.ylabel('Declinacion [deg.]')
pl.show()

png

There is nothing in the rest of the data. This is what we call a flare and it seems to be very intense. If you want to know more about flares, spend a night with Leyre. I’ll call her right now and tell her I’ve seen this one.
