Models, hypotheses and data
Models, hypotheses and data
For many years now we have been observing the grouping of Perseus galaxies. In fact, we’ve actually got more data from Perseus than from CasA.
Perseus is about 65 million light years in size, but since it’s 250 million light years away, its apparent size in the sky is a few degrees and we get all of it in one shot using the camera on our telescopes.
Why don’t you analyse the data we have from Perseus now you know how to do it? Look for the Theta2 plot of the accumulated data for Perseus in the scientific notebook and try to interpret the result.
We're a team of many scientists looking to solve the subject of dark matter. And we all help each other. Cosmologists, theorists, particle physicists... we all contribute and look the problem from different angles.
Cosmologists show us how dark matter should be distributed in Perseus. They’ve studied it with optical telescopes and can make maps of dark matter from different areas of the Universe.
And theoretical physicists use models to calculate the amount of gamma rays we would expect to find. It’s with this information that we’re able to go hunting.
We have our hypotheses and we have some telescopes at our disposal: we’ll be looking for data to determine if our hypotheses are right.
The theory I am testing claims that the number of gamma rays we should observe is determined by the following logic:
Ngamma_ray ( r ) = N_0 (si r<0.1 deg)
Ngamma_ray ( r ) = N_0/(100 r^2) (si r>= 0.1 deg)*
In the notebook on the right, you can see how I use this and the fact that I can’t see gamma rays from Perseus to define the maximum of dark matter in Perseus.
# All hope is not lost…the dark side may still be there
Let’s see what it means to not see a gamma-ray signal when I look at the Perseus cluster. That doesn’t mean that they don’t reach us, only that, if they do, they do so in a quantity that is smaller than a specific number. Let’s have a look!
%matplotlib inline
%pylab inline
import math
import numpy as np
import matplotlib.pyplot as pl
import random as rnd
Populating the interactive namespace from numpy and matplotlib
The first thing to do is to implement the theoretical model which tells us how many gamma rays come from the Perseus cluster. That depends on what part of Perseus we’re looking at and it can be simplified with a parameter indicating the radius (r) of the circumference we’re observing. It also depends on a normalization factor that we’ll call N0.
To find out how many gamma rays reach us for each parameter value, it’s best to define a function. You’ve already used a lot of Python functions. Let’s now see how can define one…it’s easy:
def NumeroRayosGamma( No, r ):
if r <= 0.1 :
Num = No* math.pi*r**(2.0)
if r > 0.1 :
Num = No* math.pi*(0.1**(2.0)+1e-4*(0.1**(-2.0)-r**(-2.0)))
return Num
Yup! A piece of cake! First define the function itself: what it’s called and what parameters we put through it.
def NumeroRayosGamma( No, r ):
Then, we define what the function does. As I said before, the number of gamma rays that come from the Perseus cluster depends on which part of the cluster we look at. In fact, the value is constant if we look at less than 0.1 degrees from the centre, but it decreases rapidly (with the radius to the fourth power) if we look further away. To take into account these two options we need to use the if condition:
if r <= 0.1 :
if r > 0.1 :
And within each condition we calculate how many gamma rays we see by looking from the centre of the cluster to the value of radius (r) and the normalization (No) that we include in the function.
Finally, we tell the function to return the number of calculated gamma rays:
return Num
Watch out, though! Where each line of code starts is important…for me, that’s the most annoying thing about Python.
Now we just have to write a line of code to know how many gamma rays should reach us. For example, if we look inside 0.2 degrees and assume a normalization factor of 1000:
NumeroRayosGamma( 1000, 0.2 )
NumeroRayosGamma( 1000, 0.2 )
54.97787143782138
In fact, before we saw that if I count events in the first two divisions of my theta plot, I have:
Events ON = 18477.0 Events OFF = 18338.0
Since I have 40 divisions in theta square between 0 and 0.40, that means that the first two divisions cover 0.02 square degrees in the theta square, which translates to a square root of 0.02 (0.1414) degrees. That means that for a normalization of 1000, we’d hope to receive.
print (NumeroRayosGamma( 1000, 0.1414 ), "rayos gamma")
47.1191445659 rayos gamma
Now we have to do something similar to what Alba did to understand what the significance means. Do you remember what that was?
We know that, on average, there are 18,338 noise events and that, on average, 47.1 events reach us. But those are just the average values. If we observe only once for the more than 100 hours that we have carried out, the values may be different. This is what happened with the observations simulated by Alba assuming there was no signal. Only now we’ll assume that the signal is on average 47.1 gamma rays.
Now that you know how to define a function, you no longer need to use it :D. So, let’s see how we simulate those observations.
First we define where we want to put the results of the simulation and initialize the function rnd that generates random numbers:
sigma = np.zeros(10000)
exceso = np.zeros(10000)
rnd.seed(1975)
So, I have created a variable sigma and another exceso (excess) which for now are a set of 10000 zeros.
With “rnd.seed (1975)” I give the seed to the random number generator so that it starts generating them. That is necessary because computers stil don’t know how to do 100% random things (well, I’m not sure I know how to do it either), they are pseudo-random and the series is defined by the seed. But what we’re doing is more than enough for what we need.
Now we simulate 10000 observations for which we have an average of 18338.0 events OFF and 18338.0 + 47.1 events ON and we see how many excesses there are for each simulated observation.
test = NumeroRayosGamma(1000,0.02**(0.5))
for x in range(0, 10000):
EventosON=rnd.gauss(18338, (18338)**(0.5))+rnd.gauss(test, (test)**(0.5));
EventosOFF=rnd.gauss(18338, 18338**(0.5));
sigma[x] = (EventosON-EventosOFF)/(EventosON+EventosOFF)**(0.5)
exceso[x] = EventosON - EventosOFF
To avoid having to write 47.1 a load of times, I’ve created a variable where I put the value of the gamma rays that I’m expecting using the function that we defined earlier. That also lets me see what happens with a different value of expected gamma rays just by changing a line of code:
test = NumeroRayosGamma(1000,0.02**(0.5))

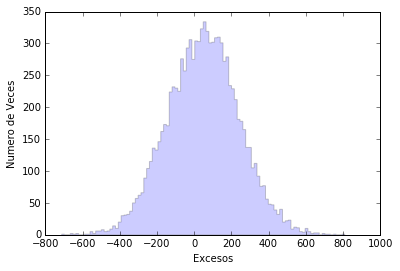

Alba used the variable sigma, we’ll use the variable exceso (excess). Let’s see what distribution it has.
veces, excesos, _ = pl.hist(exceso, bins=100, histtype='stepfilled',alpha=0.2, normed=False)
pl.xlabel('Excesos')
pl.ylabel('Numero de Veces')
pl.show()
Now let’s see what percentage of these simulated observations would give us more excesses than we see in the data (18477-18338 = 139). For that, we need to use the number of times that an excess occurs and that I have saved in veces (times) and excesos using the graph that I just generated. Do you remember how this is done? With “veces, excesos, _ = pl.hist (exceso, bins=100, histtype=‘stepfilled’, alpha=0.2, normed=False)” I keep the Y axis values of the graph in veces and those of the X axis in excesos
Now I can make a loop giving values to x between 0 and 100 (“for x in range (0.100):”) and then check when we have more than what we observed in our actual observation. It’s basically the same as what Alba did to see the probability of having 2.7 sigmas.
VecesAcumuladas = np.cumsum(veces)
Probabilidad = 1.0-VecesAcumuladas/(VecesAcumuladas.max())
for x in range(0,100):
if excesos[x] > (18477.0-18338):
print ("La Probabilidad de tener más de ", 18477.0-18338, "eventos es: ", Probabilidad[x]*100, "%")
break
The probability of having more than 139.0 events is: 28.83%
When we have no signal in our observations, what we do is put an upper limit on gamma rays that are getting to us. One way to do this is to look for the gamma-ray value for which 95% of the time we’d have more excesses than we’ve observed. With the hypothesis of N0 = 1000, we’re far away.
Now is when it’s good for me to use the variable test and to have defined the function NumberRaysGamma (No, r). It makes it easier to find for what value of N0 the condition is met.
test = NumeroRayosGamma(10000,0.02**(0.5))
for x in range(0, 10000):
EventosON=rnd.gauss(18338, (18338)**(0.5))+rnd.gauss(test, (test)**(0.5));
EventosOFF=rnd.gauss(18338, 18338**(0.5));
sigma[x] = (EventosON-EventosOFF)/(EventosON+EventosOFF)**(0.5)
exceso[x] = EventosON - EventosOFF

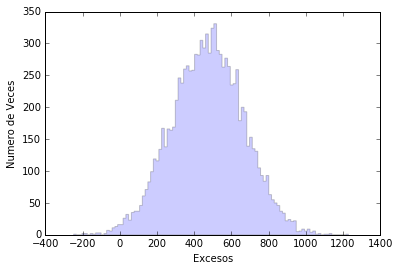

veces, excesos, _ = pl.hist(exceso, bins=100, histtype='stepfilled',alpha=0.2, normed=False)
pl.xlabel('Excesos')
pl.ylabel('Numero de Veces')
VecesAcumuladas = np.cumsum(veces)
Probabilidad = 1.0-VecesAcumuladas/(VecesAcumuladas.max())
for x in range(0,100):
if excesos[x] > (18477.0-18338):
print ("La Probabilidad de tener más de ", 18477.0-18338, "eventos es: ", Probabilidad[x]*100, "%, cuando esperamos ", test, "rayos gamma, que se obtienen con N0 = ",10000)
break
The probability of having more than 139.0 events is: 94.64%, when we expect 471.238898038 gamma rays, which is what we get with N0 = 10000
N0 is related to the amount of dark matter in the Perseus cluster. So, my data doesn’t tell me that there’s no dark matter there, only that there’s less than a certain amount…all hope is not lost.
