Night 2:The Microquasar Wakes Up
Signal or statistical fluctuation?
Signal or statistical fluctuation?
Remember that hunters live surrounded by noise.
And there’s no possible shortcut. The only thing we can do is learn to deal with it effectively.
Daniel taught you to perform an OFF observation OFF subtract it. But let me tell you something: that’s not going to be enough.
Sometimes the noise actually takes the form of a signal. And then we think we’re seeing something, when actually what we have in front of us is a ghost called statistical fluctuation.
How can we be sure that we’re looking at is even hint that Cyg-X1 has woken up? How can we know that it’s not a bad statistical joke?

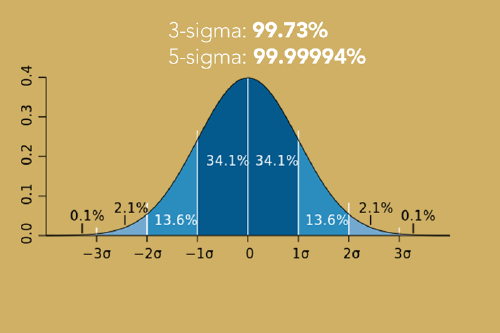

The only way to do this is to have a signal that is very (emphasis on very) difficult to be produced by a statistical fluctuation from no signal. This is what we call “significance” and it’s measured in units of “sigmas”.
In physics you can say you have a discovery when you have 5 sigmas. If you only have 3 sigmas, then you have some hint that needs more data to know if there is something or not. With less significance it almost comes down to guess work as to whether something is there or not.
When you have 5 sigmas you can be sure that statistical fluctuations could only give you a result like the one you have seen 0.00006% of the time. If you have 3 sigmas it will be 0.27% of the time.
The sigmas are a measurement of how much we can trust our results. Having 5 sigmas means that there is only a 1/35 million chance that what we’re seeing is nothing but noise disguised as a signal.
Sometimes I think that besides being gamma-ray hunters we’re sigma hunters :_(
In the notebook, I’ll show you the significance and sigmas using the example of Cyg-X1 (for which we have already calculated the sigmas) and random numbers (which is what the noisegive us).
The curse of the 3 sigmas
Let’s see if we can see the meaning of the 2.7 sigmas we have managed to get.
As usual, let’s start by loading the necessary libraries
import numpy as np
from SimularBackground import *
%matplotlib inline
I’ve created a function that simulates 10000 observations for which there is no signal. The expected number of events for ON and OFF observations are the same. That doesn’t mean that we always have the same number of events for ON and OFF. It’s like when you throw two dice, the expected average value of the sum of the two dice is 7, but that does not mean that sometimes they do not add up to 2 or 12.
For each of these simulated observations (which would take an entire lifetime to do them and only them!), I calculate the Significance that is given in units of sigmas.

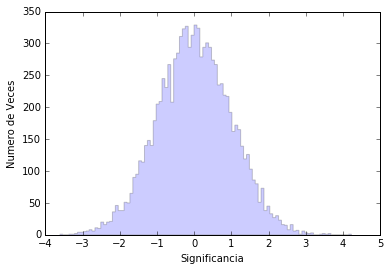

grafica("Significancias")
The negative part of the distribution is for the cases in which there are more events in the OFF observations than in the ON ones, which doesn’t make much sense in terms of physics. It’s simply due to what we call statistical fluctuations. The positive part of the distribution in this case is also statistical fluctuations by construction. But in real observations like the one we’re analysing from Cyg-X1, we can’t distinguish between a statistical fluctuation or a true signal.

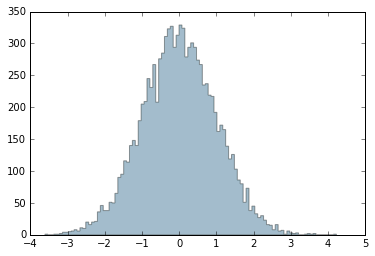

That’s to say, the more sigmas our significance has, the less likely it is to be a statistical fluctuation. You can see from the graph that the number of times I have a certain value of sigmas decreases when the sigma grows.
In fact, we’re going to calculate the probability of having a statistical fluctuation that gives me a greater significance than the one we have with the Cyg-X1 data.
# First, I recover from the graph the number of "Times" that I have each "Significance"
# I do this with a couple of functions that I've already created
Veces=valores("Numero de Veces")
Significancias=valores("Significancias")
# Now I use a library function that I have loaded NumPy, which adds up for each bin
# the values of all previous bins. For example, I go from (3,6,0,4,1) to (3,9,9,13,14)
VecesAcumuladas = np.cumsum(Veces)
# And with this it's easy to calculate the fraction of times that I have a greater significance
# than any value. First I calculate the probability for each of the values
# of sigma in the graph
Probabilidad = 1.0-VecesAcumuladas/(VecesAcumuladas.max())
# And finally, I use a loop (for x in range (0.100)) for which x varies from
# 0 to 100, and look for those instances when the value of the significance is greater than 2.68
# and that's where I will have my probability:
for x in range(0,100):
if Significancias[x] > 2.68 :
print ("The probability that the noise does not generate a significance of 2.68 or greater is:", Probabilidad[x]*100, "%")
break
The probability that the noise won’t generate a significance of 2.68 or higher is 0.22%
I think we can all agreee that a 0.22% probability is quite small. But not small enough. Scientists want to make sure that what we’re seeing is what is actually happening. To be sure that statistical fluctuations are not leading to fake discoveries the scientific field normally requires that the Significance be 5 sigmas. That is a probability of 0.000025%
Note: Defining functions helps us to go step-by-step, but if you’re interested in knowing what is defined in the functions, don’t hesitate to ask us in the forum.
